carburetor repair or rebuild kits for certain Honda CB350 & CL350 twins from 1970-1973. Comes with everything shown. It even has both types of air mixture screws that were used. Check the list below for jets sizes. This kit comes with a shaped float bowl gasket and passage plug made of high quality Viton rubber so it will not swell after coming in contact with fuel.
Deluxe carburetor repair or rebuild kits for certain Honda CB350 & CL350 twins from 1970-1973. Comes with everything shown. It even has both types of air mixture screws that were used. Check the list below for jets sizes. This kit comes with a shaped float bowl gasket and passage plug made of high quality Viton rubber so it will not swell after coming in contact with fuel.
NOTE: Be sure to check your carbs to see if this kit will work for your bike. This kit works with carburetor models 3D, 722A, 726A & 728A which were used on engine number 1065279 and later.
Includes 2 floats with pins, and 2 carburetor rebuild kits. Made in Taiwan.

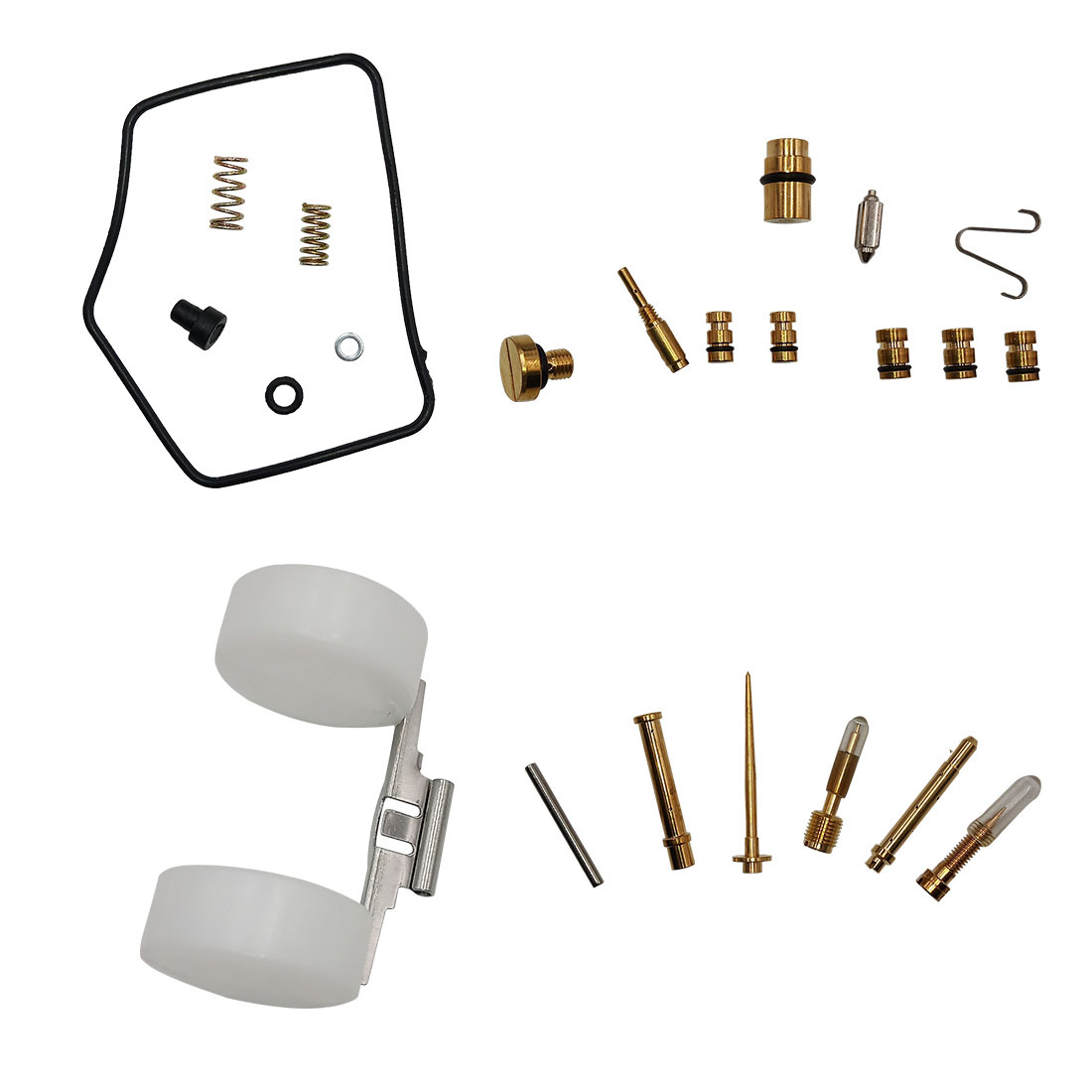

Each Carburetor Kit Includes:
Shaped Float Bowl Gasket (Much easier to install than a round o-ring) Main Nozzle Secondary Nozzle Float Needle Valve & Seat D20 Slide Needle, Clip & Spring Air Adjustment Screw & Spring (Fits 3D carburetors - Does not fit all carburetor models) Air Adjustment Screw, Spring, Washer & O-Ring Secondary Main Jet #100 (Carb model 728A) Secondary Main Jet #105 (Carb models 3D, 722A, 726A) Secondary Main Jet #110 (optional if you are running aftermarket air filters / aftermarket exhaust) Primary Main Jet #68 (Carb models 722A, 726A) Primary Main Jet #70 (Carb models 3D, 728A) Idle Jet #35 Slow Jet Passage Plug Drain Screw With O-Ring
